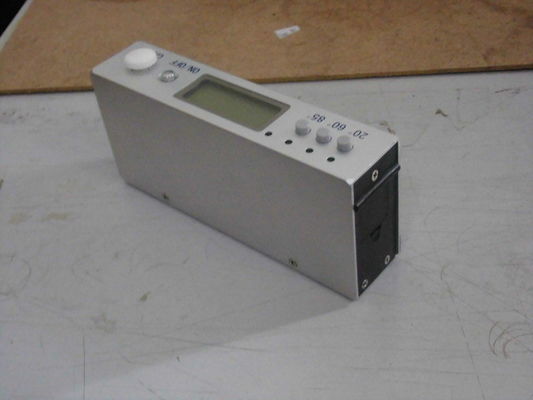

Portable Digital Gloss meter GTS With three Angles for coating, printing, metal

Place of Origin China
Brand Name SADT
Certification ISO9001,CE
Model Number GTS
Minimum Order Quantity 1set
Price USD600-1300/Pcs
Packaging Details Delivery package: carton
Delivery Time within 3 workdays after receipt of your advanced payment
Payment Terms T/T, Western Union
Supply Ability 500 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Net Weight(g) 390 Application Paint, Coating, Printing, Ceramics
Window Size (mm) 11×52 Geometry 20° 60° 85°
Technical Parameters JJG696-2002 Dimension (mm) 144x32x64
Language English Warranty 1 Year
High Light

portable gloss meter


elcometer gloss meter

Leave a Message
Product Description

Electronic Multi-glossmeter GTS With 20 60 85 Projecting Angles




Glossmeter GTS Details



1. General information


    The  GT  Series  gloss  meters  are  designed  and  manufactured  according  to international                     standards  ISO  2813,  ASTM  D  523  and  DIN  67530.  The  technical parameters are up to JJG696-       2002.


2. Applications


   (1)  Measurement of paint and dope surface gloss in the automobile, electronic, appliance and musical instrument industries.
   (2)  Measurement  of  flooring,  marble,  granite  and  ceramic  tile  gloss  in  the architecture and decorating businesses.
   (3)  Measurement  of  printing  ink  and  paper  in  the  printing  and  packaging industries.
   (4)  Measurement of highly polished metals such as aluminum and its alloys.
   (5)  Measurement of plastic film and ceramics.


3. Features


    (1)  Handheld, electronic, digital display
    (2)  Typically operates for 60 hours on one AA alkaline battery
    (3)  Extruded, durable aluminum body
    (4)  Built-in light source, no additional light required


4. Technical data



 Geometry   20°  60°  85°
 Measuring spot  size (mm)   20°  (10x10) 60°  (10x20) 85°  (8x30)
 Measuring size(mm)    11×52
 Readout Error(Gu)    ±1.2
 Repeatability   ±0.4
   20°: 0~200     60°: 0~1000        85°: 0~160
 Power supply    1.5AA batteries
 Dimensions(mm)   144x32x64
 Weight   390g
 Operating temp.   -10℃~~60℃
 Standards   ISO2813, ASTM D523, DIN-67530, GB/T9754, GB/T7706,               GB/T9966.6
