Portable Concrete Test Hammer Economical For Testing Artificial Brick rebound hammer

China Portable Concrete Test Hammer Economical For Testing Artificial Brick rebound hammer supplier
Portable Concrete Test Hammer Economical For Testing Artificial Brick rebound hammer supplier Portable Concrete Test Hammer Economical For Testing Artificial Brick rebound hammer supplier Portable Concrete Test Hammer Economical For Testing Artificial Brick rebound hammer supplier Portable Concrete Test Hammer Economical For Testing Artificial Brick rebound hammer supplier Portable Concrete Test Hammer Economical For Testing Artificial Brick rebound hammer supplier

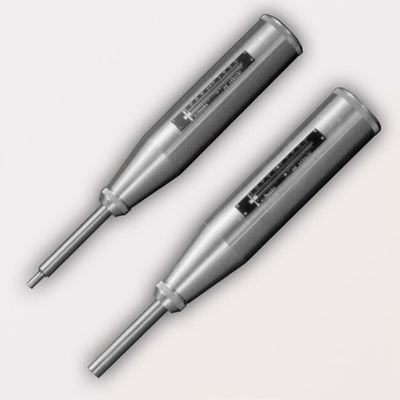

Large Image :  Portable Concrete Test Hammer Economical For Testing Artificial Brick rebound hammer

Product Details:

Place of Origin: Beijing
Brand Name: SADT
Certification: CE ISO9001
Model Number: HT75

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD60-110/Pcs
Packaging Details: Standard package
Delivery Time: Within 3 days after receiving payment
Payment Terms: T/T in advance, Western Union
Supply Ability: 50pcs/week
Contact Now
Detailed Product Description
Testing Range: 10-70N/mm2 Key Words: Rebound Hammer
Impact Energy: 0.075kgm (0.735Nm) Application: For Testing Small And Impact-sensitive Parts Of Concrete Or Artificial Brick
Dimension (mm): φ60x280 Net Weight: 1.0kg
Standards: ISO/DIS 8045, EN 12504-2, ENV 206, DIN 1048 Part 2, ASTM C 805, ASTM D 5873, NFP 18-417, B 15-225, JGJ/T 23-2001, JJG 817-1993 Certificate: ISO9001 /CE/SGS

 Concrete Test Hammer Economical For Testing Artificial Brickrtable








DESCRIPTION:



When testing the strength of concrete, the concrete test hammer uses a certain

elastic force to transit the impact force of an impact hammer to the surface of

concrete, its initial kinetic energy redistributes, a part of energy in the

form of plastic deformation or residual deformation is adsorbed by the

concrete, and another part of energy which is proportional to the surface

hardness is transmitted to the impact hammer, making the hammer resile to a

certain height, then the strength of the concrete is derived from the

proportional relation between the height of resilience and the concrete

strength.


With the merits of simple structure, easy correction, maintenance and repair,

and portability, the concrete test hammer is widely used in civil engineering

and construction industry for testing the strength of concrete.


Compared to other nodestructive testers, the concrete test hammer is an

economical and practical nondestructive testing instrument.



HT-75 is used for testing small and impact-sensitive parts of concrete or

artificial brick.





Standard package


HT75 main unit 1
Grinding wheel 1
Operation manual 1
Carrying case 1
