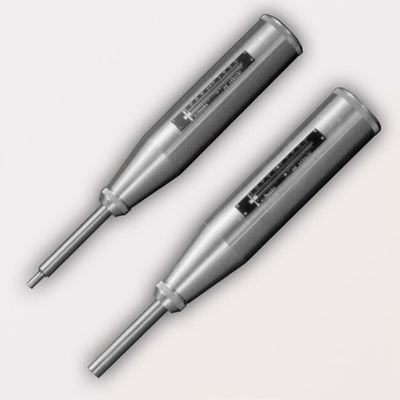

Portable Concrete Test Hammer Economical For Testing Artificial Brick rebound hammer

Place of Origin Beijing
Brand Name SADT
Certification CE ISO9001
Model Number HT75
Minimum Order Quantity 1pc
Price USD60-110/Pcs
Packaging Details Standard package
Delivery Time Within 3 days after receiving payment
Payment Terms T/T in advance, Western Union
Supply Ability 50pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Testing Range 10-70N/mm2 Key Words Rebound Hammer
Impact Energy 0.075kgm (0.735Nm) Application For Testing Small And Impact-sensitive Parts Of Concrete Or Artificial Brick
Dimension (mm) φ60x280 Net Weight 1.0kg
Standards ISO/DIS 8045, EN 12504-2, ENV 206, DIN 1048 Part 2, ASTM C 805, ASTM D 5873, NFP 18-417, B 15-225, JGJ/T 23-2001, JJG 817-1993 Certificate ISO9001 /CE/SGS
High Light

digital schmidt hammer


digital vibration meter

Leave a Message
Product Description

 Concrete Test Hammer Economical For Testing Artificial Brickrtable






When testing the strength of concrete, the concrete test hammer uses a certain

elastic force to transit the impact force of an impact hammer to the surface of

concrete, its initial kinetic energy redistributes, a part of energy in the

form of plastic deformation or residual deformation is adsorbed by the

concrete, and another part of energy which is proportional to the surface

hardness is transmitted to the impact hammer, making the hammer resile to a

certain height, then the strength of the concrete is derived from the

proportional relation between the height of resilience and the concrete


With the merits of simple structure, easy correction, maintenance and repair,

and portability, the concrete test hammer is widely used in civil engineering

and construction industry for testing the strength of concrete.

Compared to other nodestructive testers, the concrete test hammer is an

economical and practical nondestructive testing instrument.


HT-75 is used for testing small and impact-sensitive parts of concrete or

artificial brick.



Standard package

HT75 main unit 1
Grinding wheel 1
Operation manual 1
Carrying case 1
