Concrete Test Hammer HT-225A with easy Correction, Maintenance and Repair

  • Concrete Test Hammer HT-225A with easy Correction, Maintenance and Repair
  • Concrete Test Hammer HT-225A with easy Correction, Maintenance and Repair
  • Concrete Test Hammer HT-225A with easy Correction, Maintenance and Repair
  • Concrete Test Hammer HT-225A with easy Correction, Maintenance and Repair
  • Concrete Test Hammer HT-225A with easy Correction, Maintenance and Repair
Place of Origin Beijing
Brand Name SADT
Certification CE ISO9001
Model Number HT-225A
Minimum Order Quantity 1pc
Price USD60-150/Pcs
Packaging Details Standard package
Delivery Time Within 3 days after receiving payment
Payment Terms T/T in advance, Western Union
Supply Ability 50pcs/week
Product Details
Key Words Concrete Test Hammer Testing Range 10-70N/mm2
Impact Energy 0.225kgm (2.207Nm) Maximum Breakdown Friction Of Rider 0.49-0.78N(50-80g)
Meanvalue Of Steel-anvil Rating Of Hammer 80±2 Punch Advance For Impac T Hammer 75mm
Application For Testing Ordinary Building And Bridge Construction Standards ISO/DIS 8045, EN 12504-2, ENV 206, DIN 1048 Part 2, ASTM C 805, ASTM D 5873, NFP 18-417, B 15-225, JGJ/T 23-2001, JJG 817-1993
High Light

digital vibration meter

,

concrete testing machines
Leave a Message
Product Description

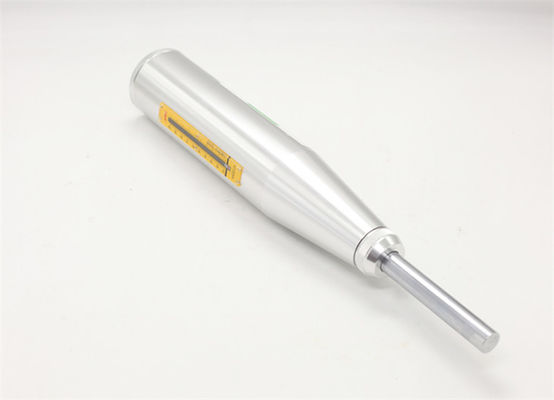

Mechanical schmidt concrete rebound test hammer ( HT-225A )



HT-225A is used for testing the strength of various concrete members (slab, beam, column, truss) of normal building strength and bridge.



Specifications:



Model HT-225A
Testing range:

0-70N/mm2
Nominal kinetic energy 2.207J(0.225kgf.m)
Flip tension spring rigidity 7.84N (0.80kgf)/cm
Punch advance for impact hammer 75mm
Impact surface hardness value between impact hammer and rod HRC59-63
Maximum breakout friction of pointer system
0.49-0.78N(50-80g)
Mean-value of steel-anvil rating of concrete test hammer
80+/-2
Standards ISO/DIS 8045, EN 12504-2, ENV 206, DIN 1048 part 2, ASTM C 805, ASTM D 5873, NFP 18-417, B 15-225, JGJ/T 23-2001, JJG 817-1993
Dimension
60x280mm
Net weight
1kg



Standard package - HT-225A



HT225A main unit 1
Grinding wheel 1
Screw driver 1
Spring 1
Operation manual 1
Carrying case 1_01_02_03_04_05_06_07_08
