HT-225D Integrated Concrete Test Hammer with Data Processor

HT-225D Integrated Concrete Test Hammer with Data Processor


Large Image :  HT-225D Integrated Concrete Test Hammer with Data Processor

Product Details:
Place of Origin: Beijing
Brand Name: SADT
Certification: CE ISO9001
Model Number: HT-225D
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD200-1100/Pcs
Packaging Details: Standard package
Delivery Time: Within 3 days after receiving payment
Payment Terms: T/T in advance, Western Union,Paypal
Supply Ability: 50pcs/week
Detailed Product Description
Key Words: Concrte Test Hammer Testing Range: 10-100N/mm2
Memory: 4000 Data Accuracy: ±0.1R
Impact Energy: 0.225kgm (2.207Nm) For Testing Ordinary Building And Bridge Construction Storage: 1000 Parts, 256 Data For Each Part
Certification: Ce/SGS/ISO9001 Warranty: 1 Year
Display: OLED
High Light:

digital schmidt hammer


digital vibration meter

HT-225D Integrated Concrete Test Hammer OLED Display with Software to PC

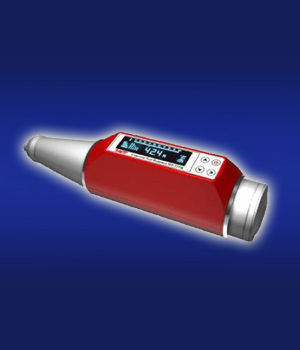

HT-225D is an integrated digital concrete test hammer which combines data processor and test hammer into one unit. It is widely used for non destructive testing quality of concrete and building materials in finished structure or prefabricated blocks. From its rebound value, the compressive strength of con¬crete can be calculated out automatically. All testing data can be stored in memory and transferred to PC by USB cable or wireless by Blue tooth.


Key features


High contrast OLED display

All setup can be made on site

Automatic calculating compressive strength

Automatic correction of impact direction

All data will be stored in memory

All data can be transferred to PC by USB cable or blue tooth(optional)

Dual display for analogue ruler and digital value




Model HT-225D HT-75D HT-20D
Display OLED digital
Measuring range 10-100N/mm2 1-25N/mm2
Accuracy ±0.1R
Impact energy 0.225kgm (2.207Nm)for testing ordinary building and bridge construction 0.075kgm (0.735Nm)for testing small and impact-sensitive parts of concrete or artificial brick 0.020kgm (0.196Nm)for testing mortal or clay of products
Communication USB2.0 or Bluetooth(optional)
Storage data for 4000 concrete structures
Operating temperature -40º-60ºC
Power supply 3.7V Li-ion rechargeable battery charged via USB port
Dimension (mm) 280x75x60
Net weight 1.1kg


Standard package


HT-225D main unit 1
Grinding wheel 1
USB cable 1
USB charger 1
Software CD 1
Operation manual 1
Carrying case 1
