HT-225D Integrated Concrete Test Hammer with High Contras OLED Display

Place of Origin Beijing
Brand Name SADT
Certification CE ISO9001
Model Number HT-225D
Minimum Order Quantity 1pc
Price USD200-1100/PCS
Packaging Details Standard package
Delivery Time Within 3 days after receiving payment
Payment Terms T/T in advance, Western Union
Supply Ability 50pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Words Digital Rebound Hammer Testing Range 10-100N/mm2
Memory 4000 Data Printer Blue Tooth Microprinter
Accuracy ±0.1R Impact Energy 0.225kgm (2.207Nm) For Testing Ordinary Building And Bridge Construction
Communication USB2.0 Or Bluetooth Warranty 1 Year
Operating Temperature -40º-60ºC
High Light

digital vibration meter

,

concrete testing machines

Leave a Message
Product Description

Digital rebound hammer HT225D Digital Schmidt Hammer





Introduction



HT-225D is an integrated digital concrete test hammer which combines data processor and test hammer into one unit. It is widely used for non destructive testing quality of concrete and building materials in finished structure or prefabricated blocks. From its rebound value, the compressive strength of con¬crete can be calculated out automatically. All testing data can be stored in memory and transferred to PC by USB cable or wireless by Blue tooth.



Key features



High contrast OLED display

All setup can be made on site

Automatic calculating compressive strength

Automatic correction of impact direction

All data will be stored in memory

All data can be transferred to PC by USB cable or blue tooth(optional)

Dual display for analogue ruler and digital value



Specifications



Model HT-225D HT-75D HT-20D
Display OLED digital
Measuring range 10-100N/mm2 1-25N/mm2
Accuracy ±0.1R
Impact energy 0.225kgm (2.207Nm)for testing ordinary building and bridge construction 0.075kgm (0.735Nm)for testing small and impact-sensitive parts of concrete or artificial brick 0.020kgm (0.196Nm)for testing mortal or clay of products
Communication USB2.0 or Bluetooth(optional)
Storage data for 4000 concrete structures
Operating temperature -40º-60ºC
Power supply 3.7V Li-ion rechargeable battery charged via USB port
Dimension (mm) 280x75x60
Net weight 1.1kg

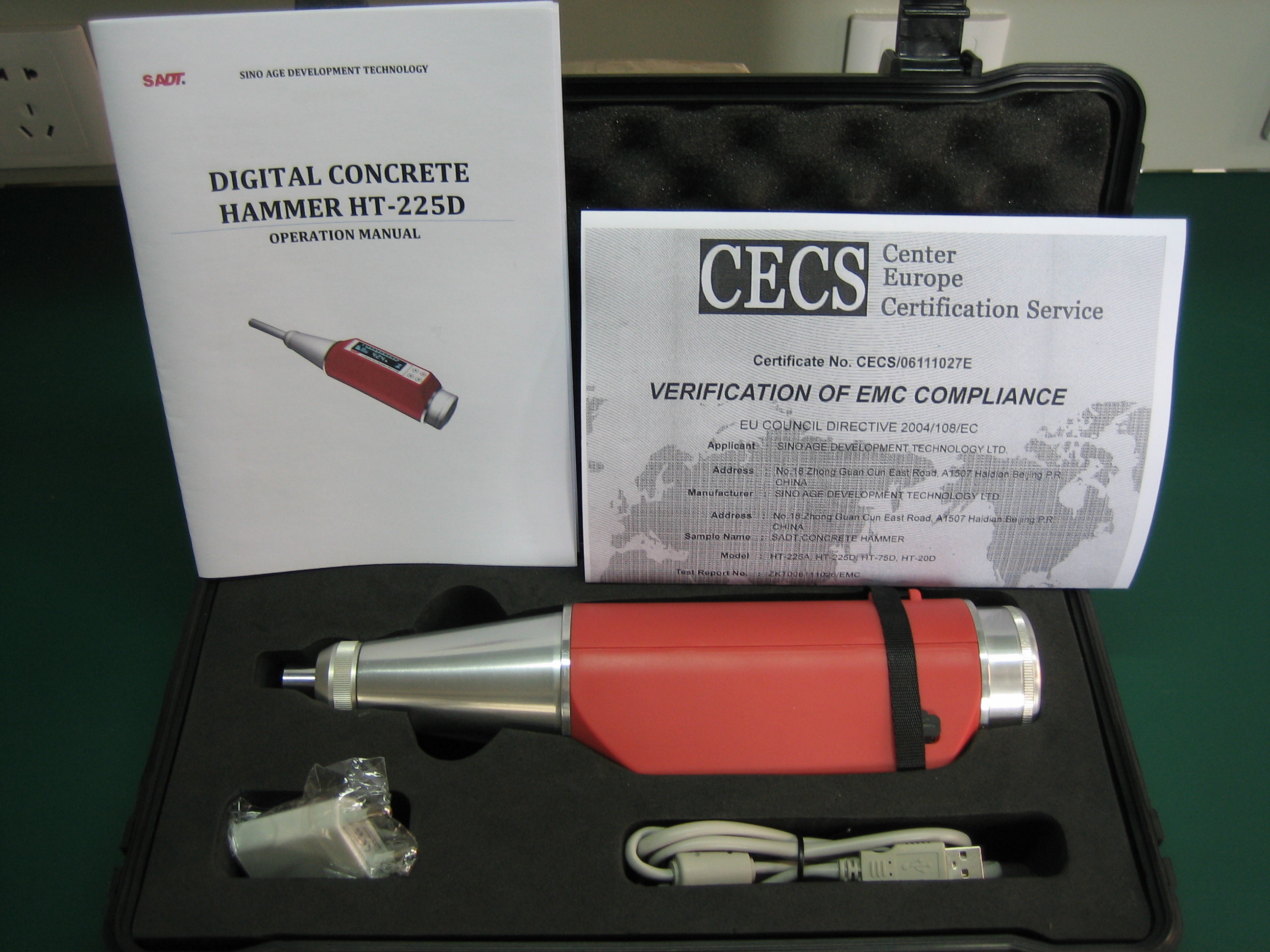

Standard package



HT-225D main unit 1
Grinding wheel 1
USB cable 1
USB charger 1
Software CD 1
Operation manual 1
Carrying case 1
