100N/Mm2 3.7V Rebound Concrete Test Hammer With PSI Value

Place of Origin Beijing
Brand Name SADT
Certification CE ISO9001
Model Number HT-225D
Minimum Order Quantity 1pc
Price USD300-800/Pcs
Packaging Details carrying case
Delivery Time Within 3 days after receiving payment
Payment Terms T/T in advance, Western Union,paypal
Supply Ability 50pcs/week
Product Details
Testing Range 10-100N/mm2 Storage 1000 Parts, 256 Data For Each Part
Operating Temperature -40º-60ºC Power Supply 3.7V Li-ion Rechargeable Battery Charged Via USB Port
Dimension (mm) 280x75x60 Net Weight 1.1kg
Name Concrete Test Hammer Memory 1000 Parts, 256 Data For Each Part
Certificate CE/SGS/ISO9001
High Light

3.7V Rebound Concrete Test Hammer

,

PSI Value Concrete Test Hammer

,

100N/mm2 Rebound Concrete Test Hammer

Leave a Message
Product Description

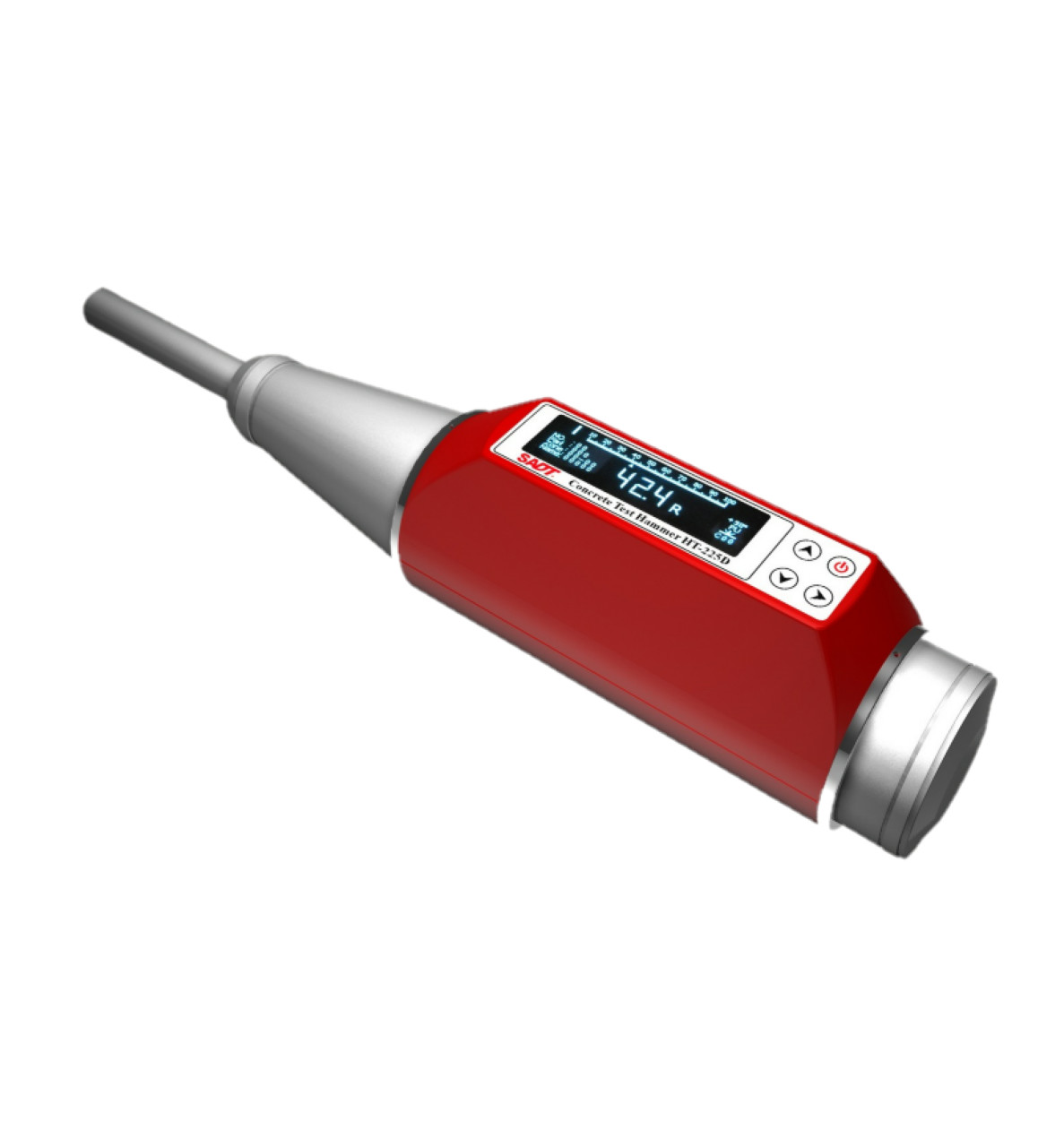

Integrated Digital Schmidt Hammer HT-225D with optional microprinter





Introduction



HT-225D is an integrated digital concrete test hammer which combines data processor and test hammer into one unit. It is widely used for non destructive testing quality of concrete and building materials in finished structure or prefabricated blocks. From its rebound value, the compressive strength of con¬crete can be calculated out automatically. All testing data can be stored in memory and transferred to PC by USB cable or wireless by Blue tooth.



Key features



High contrast OLED display

All setup can be made on site

Automatic calculating compressive strength

Automatic correction of impact direction

All data will be stored in memory

All data can be transferred to PC by USB cable or blue tooth(optional)

Dual display for analogue ruler and digital value



Specifications



Model HT-225D HT-75D HT-20D
Display OLED digital
Measuring range 10-100N/mm2 1-25N/mm2
Accuracy ±0.1R
Impact energy 0.225kgm (2.207Nm)for testing ordinary building and bridge construction 0.075kgm (0.735Nm)for testing small and impact-sensitive parts of concrete or artificial brick 0.020kgm (0.196Nm)for testing mortal or clay of products
Communication USB2.0 or Bluetooth(optional)
Storage data for 4000 concrete structures
Operating temperature -40º-60ºC
Power supply 3.7V Li-ion rechargeable battery charged via USB port
Dimension (mm) 280x75x60
Net weight 1.1kg



Standard package



HT-225D main unit 1
Grinding wheel 1
USB cable 1
USB charger 1
Software CD 1
Operation manual 1
Carrying case 1
